ELX060-20RB SERIES IS MODULAR ONLINE UPS FOR SENSITIVE EQUIPMENT. THE SINGLE CABINET POWER RATING COVERS FROM 10KVA TO 60KVA WHICH DELIVERS THE BEST OF COMBINATION OF RELIABILITY, HOT-SWAPPABLE AND FLEXIBILITY. WITH THE LATEST IGBT THREE-LEVEL TECHNOLOGY AND DSP CONTROL, ELX060-20RB ACHIEVES A HIGH INPUT POWER FACTOR, LOW THDI.
  • Modular design with N+X redundancy and online hot
    swapping, easy to expand the capacity
  • Integrated IGBT module with improved performance
    and reduced size
  • Excellent input performances for complete
    compatibility with input PF of 99% and wide range
    of voltage
  • Battery self test
  • Battery cold start, UPS can be powered on from the
    battery without utility
  • Totally front access, top and bottom cable connection
  • Friendly human machine interface with touch screen

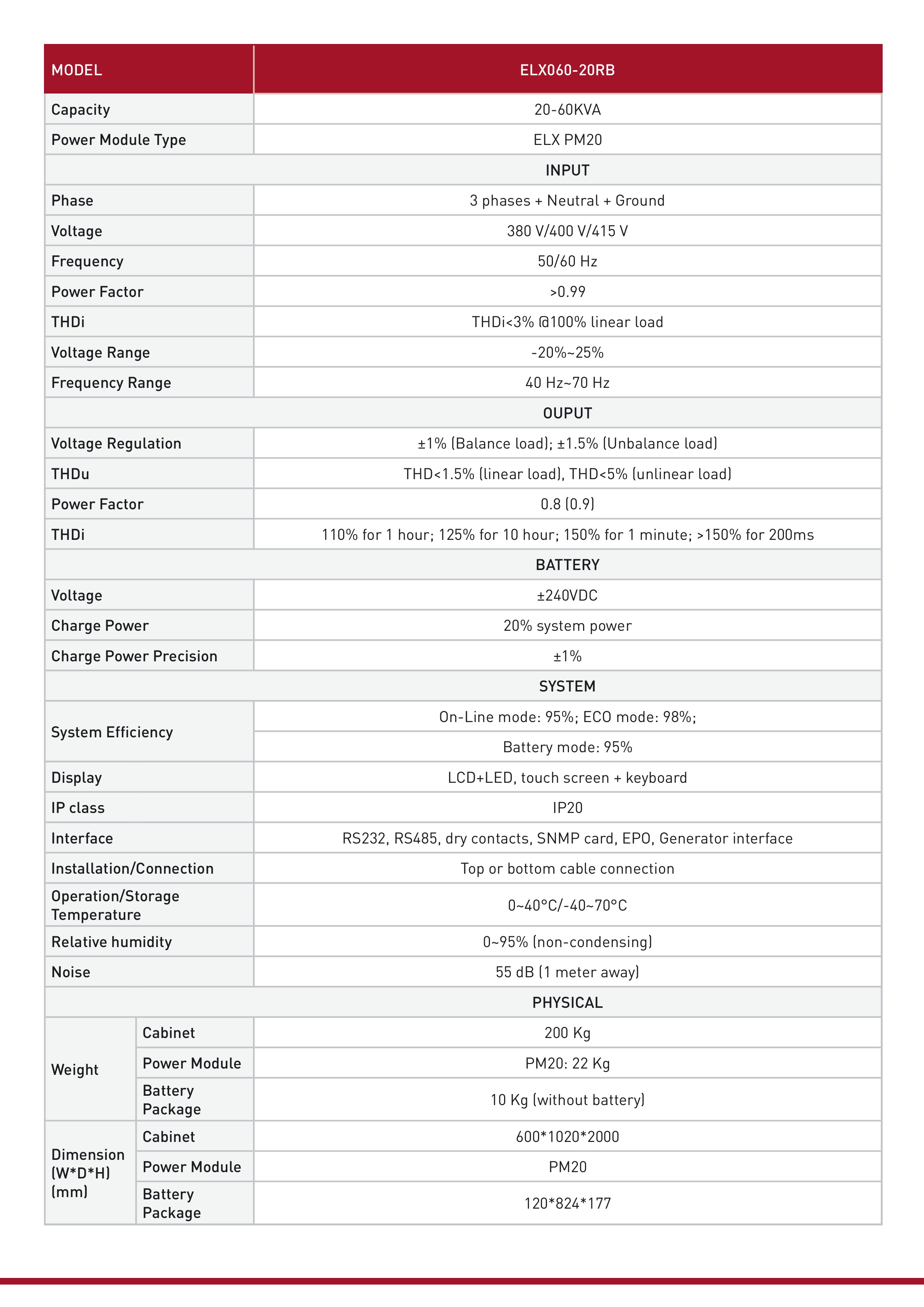

Download specification here
