Three phase UPS are reliable, simple and ready-to-use power protection for server rooms, service sector, infrastructure, healthcare sector and light industrial applications. Modular UPS is a scalable and flexible solution for e-businesses, server farms, telecommunications, medicine and computer networks. Modular UPS offer a large number of available slots which can be easily upgraded in terms of power and back-up time.

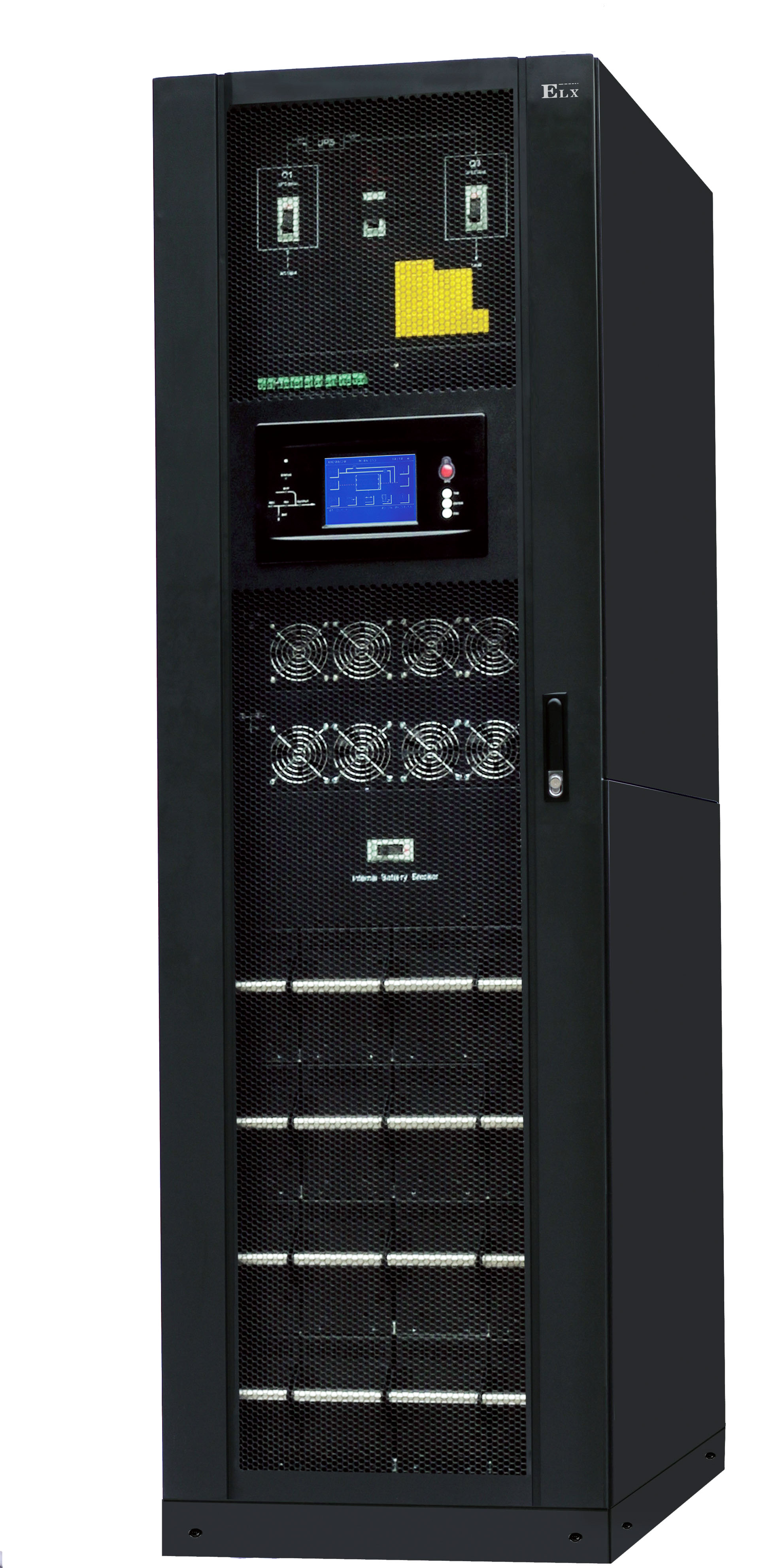

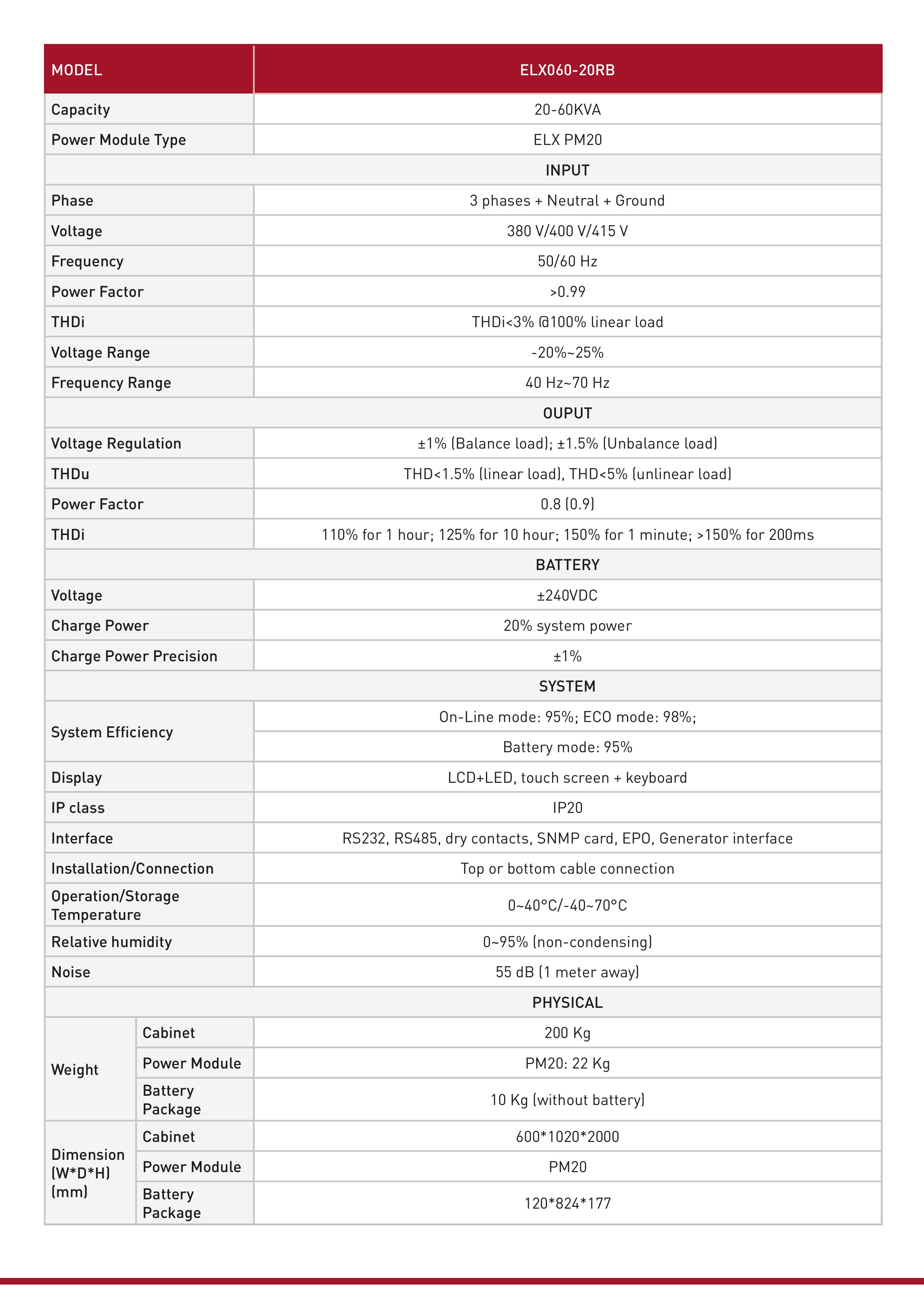

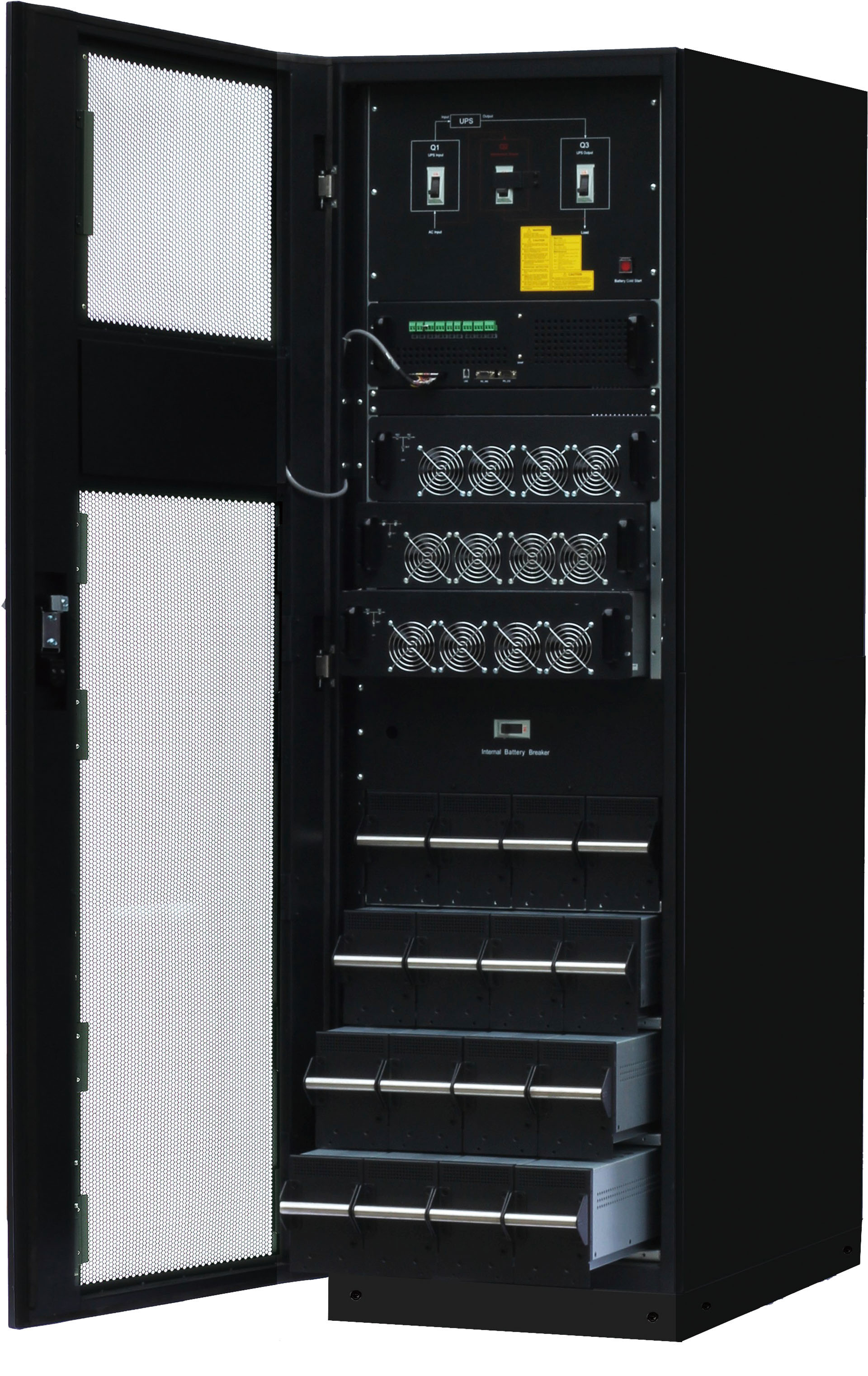

ELX060-20RB
ELX060-20RB series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 60KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, ELX060-20RB achieves a high input power factor, low THDi.
- Modular design with N+X redundancy and online hot
swapping, easy to expand the capacity - Integrated IGBT module with improved performance
and reduced size - Excellent input performances for complete
compatibility with input PF of 99% and wide range
of voltage - Battery self test
- Battery cold start, UPS can be powered on from the
battery without utility - Totally front access, top and bottom cable connection
- Friendly human machine interface with touch screen
Download specification here

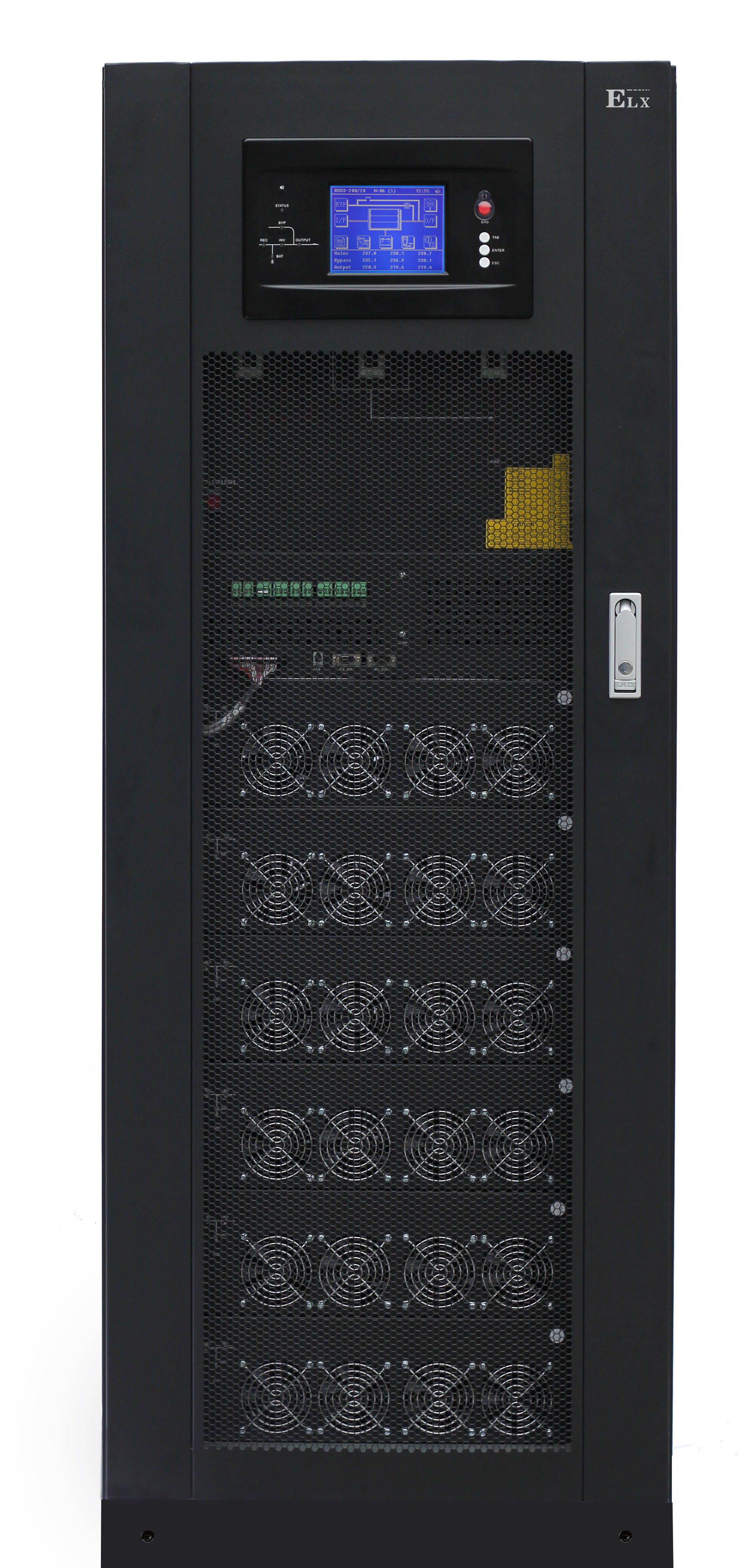

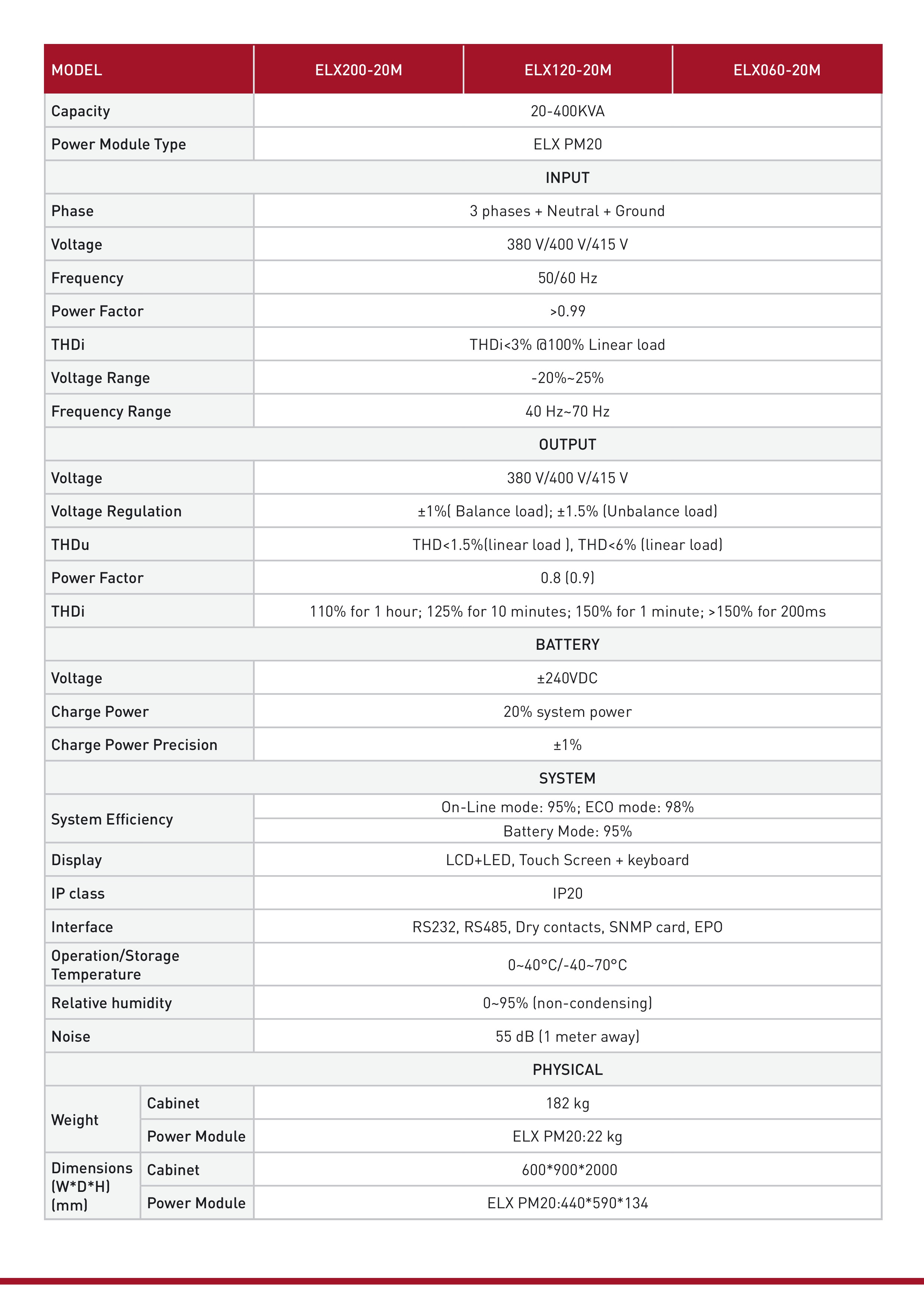

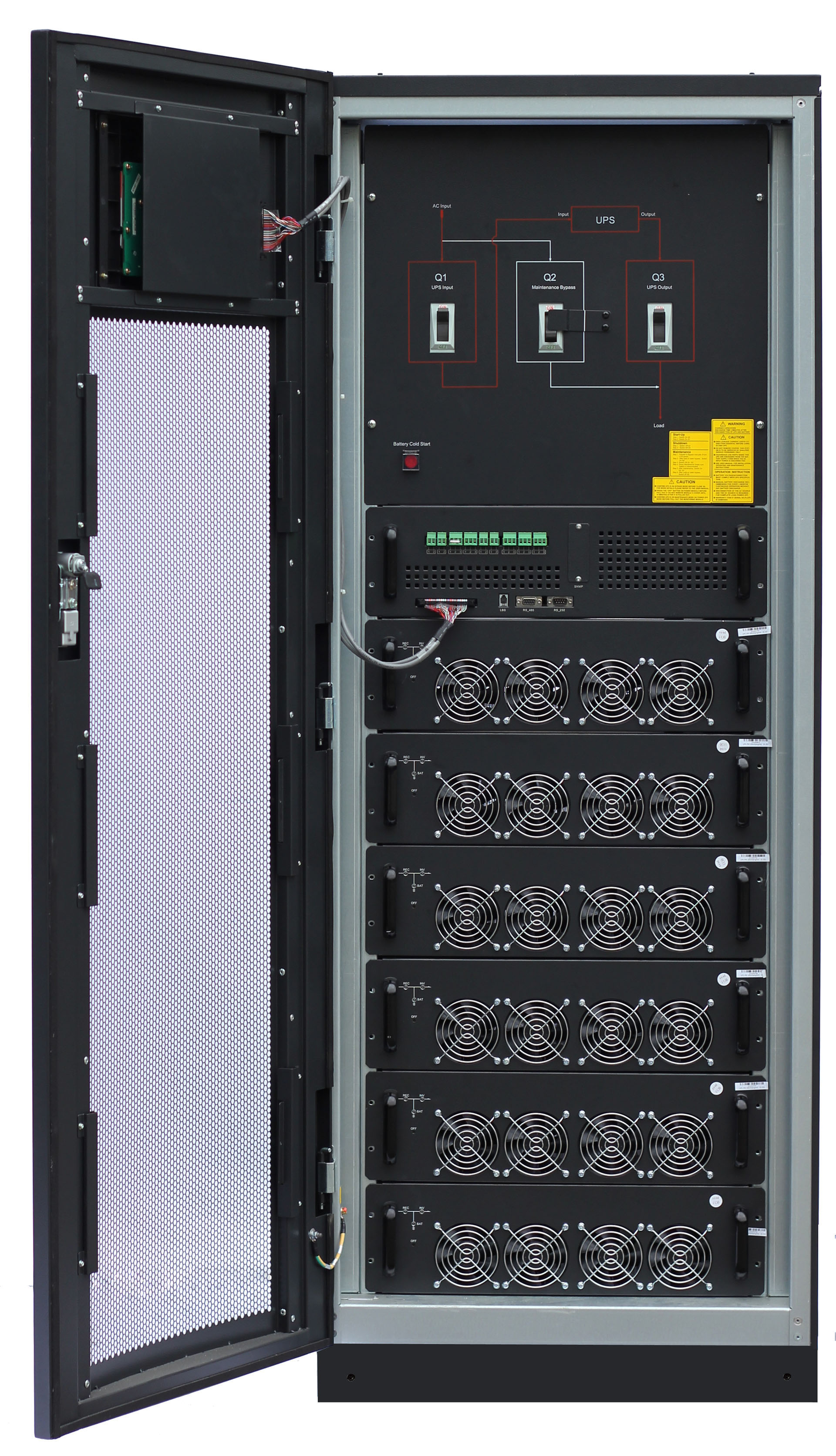

ELX 120-20M
ELX Modular series are modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 120KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, ELX120-20M achieves a high input power factor, low THDi.
- Modular design with N+X redundancy and online hot
swapping, easy to expand the capacity - Integrated IGBT module with improved performance
and reduced size - Excellent input performances for complete
compatibility with input PF of 99% and wide range
of voltage - Battery self test
- Battery cold start, UPS can be powered on from the
battery without utility - Totally front access, top and bottom cable connection
- Friendly human machine interface with touch screen
Download specification here

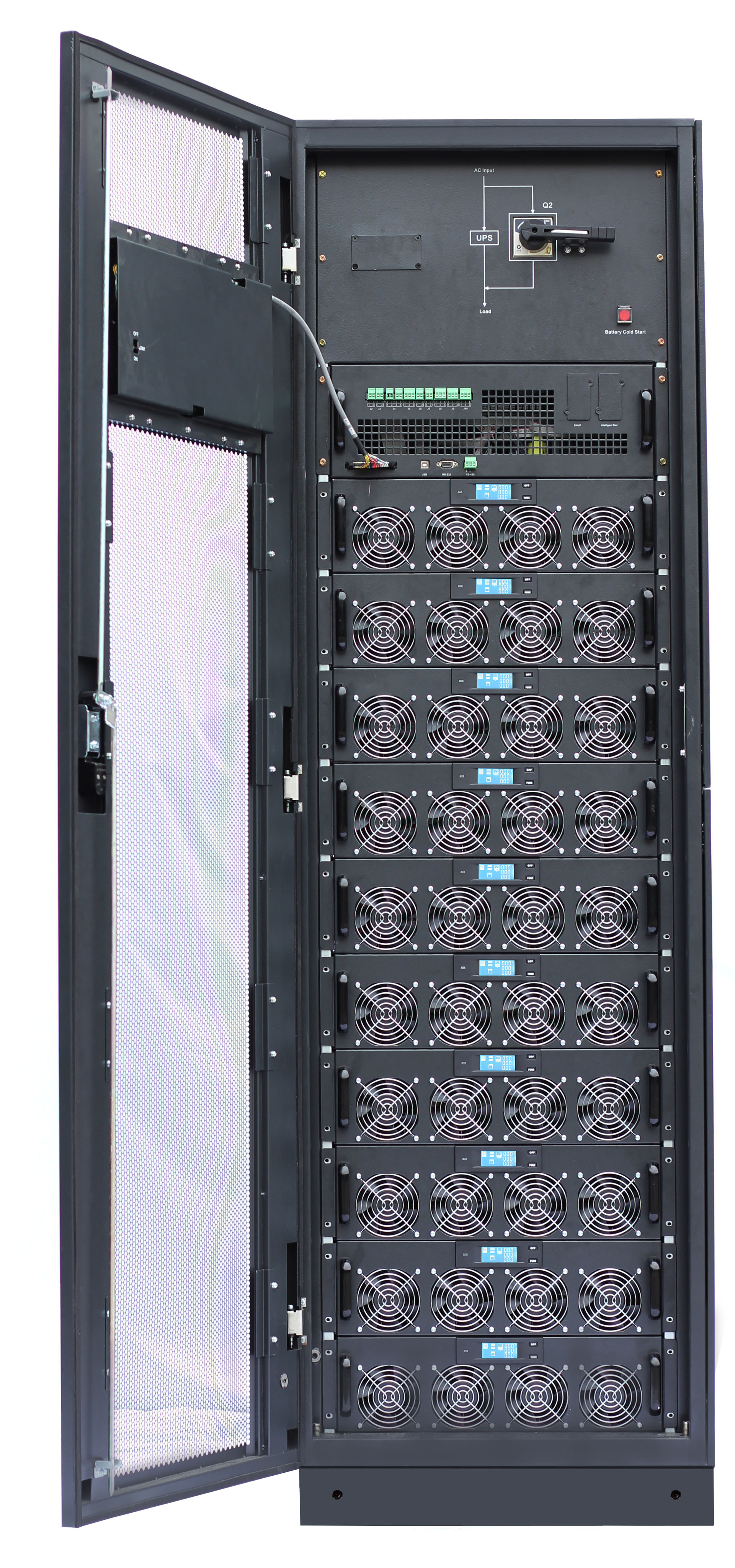

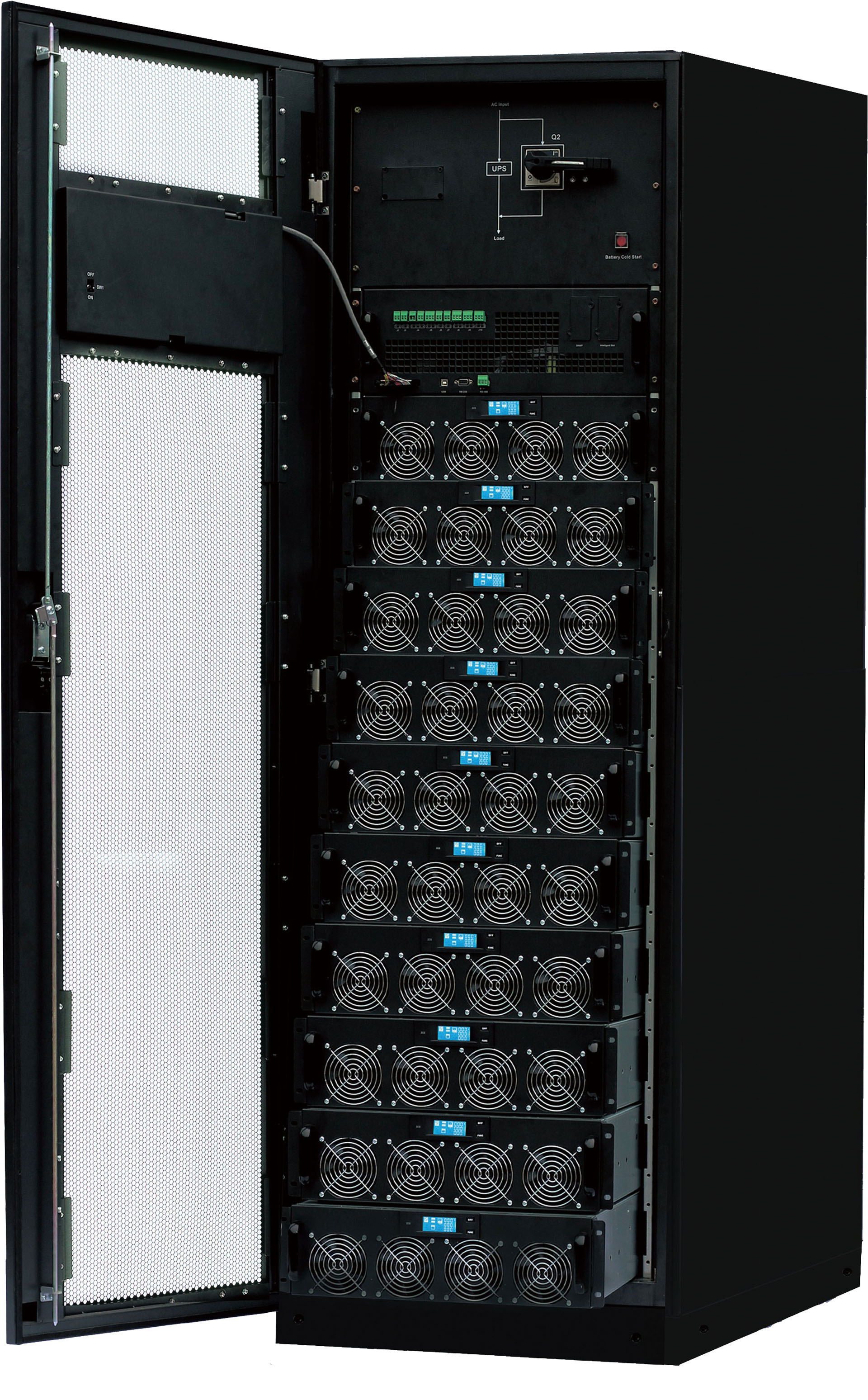

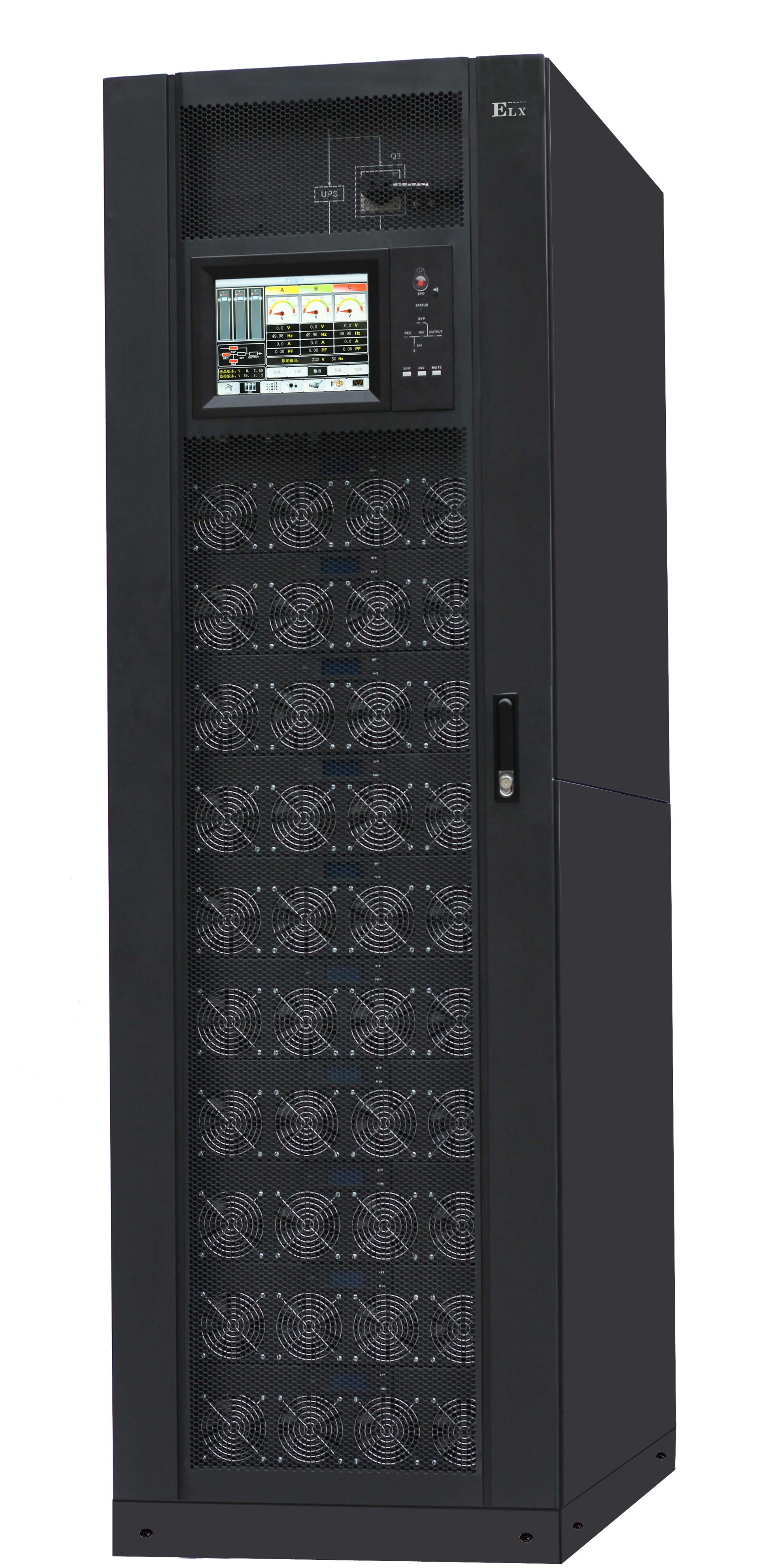

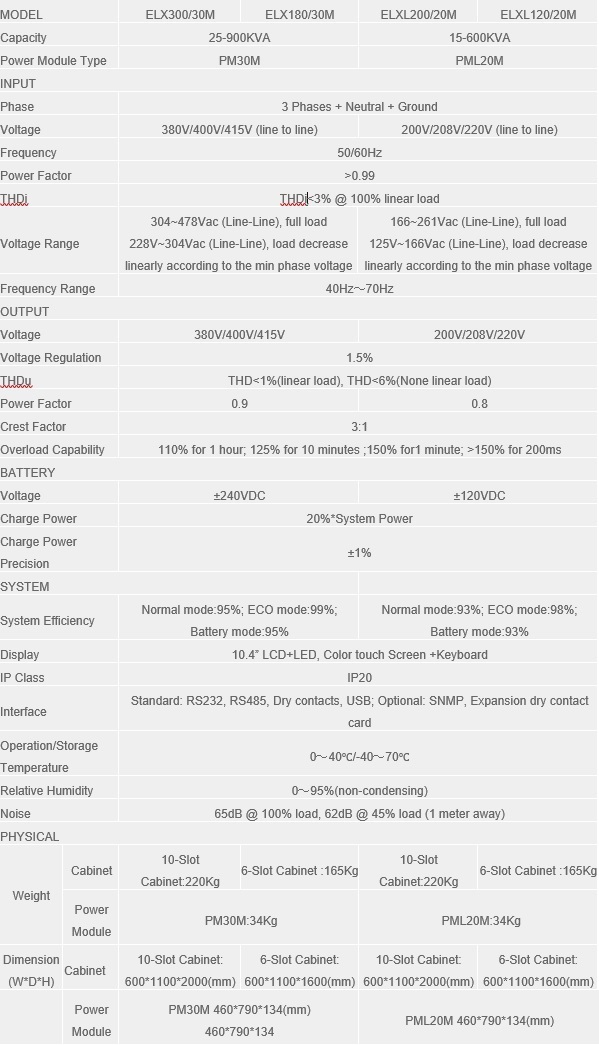

ELX300-30M
The ELX300/30M Modular UPS provides the most compact footprint of less than 2㎡ with maximum capacity of 900KVA with competitive price and high performance. It has been leading the domestic market in proven high reliability and most advanced technology for years. With its upgrade, the ELX300/30M is set to offer better protection for large data centers, as well as for sensitive electronics.
- High power density with footprints of less than 2㎡ up to 900KVA in parallel, 30KVA power module with height of only 3U
- Green and energy saving: AC/AC efficiency>95%, input power factor>0.99 while input THDi<3%
- Full DSP control of high stability, reliability and safety
- Integrated IGBT module with improved performance and reduced size
- Programmable dry contacts, the function of each port can be defined by users
Download specification here

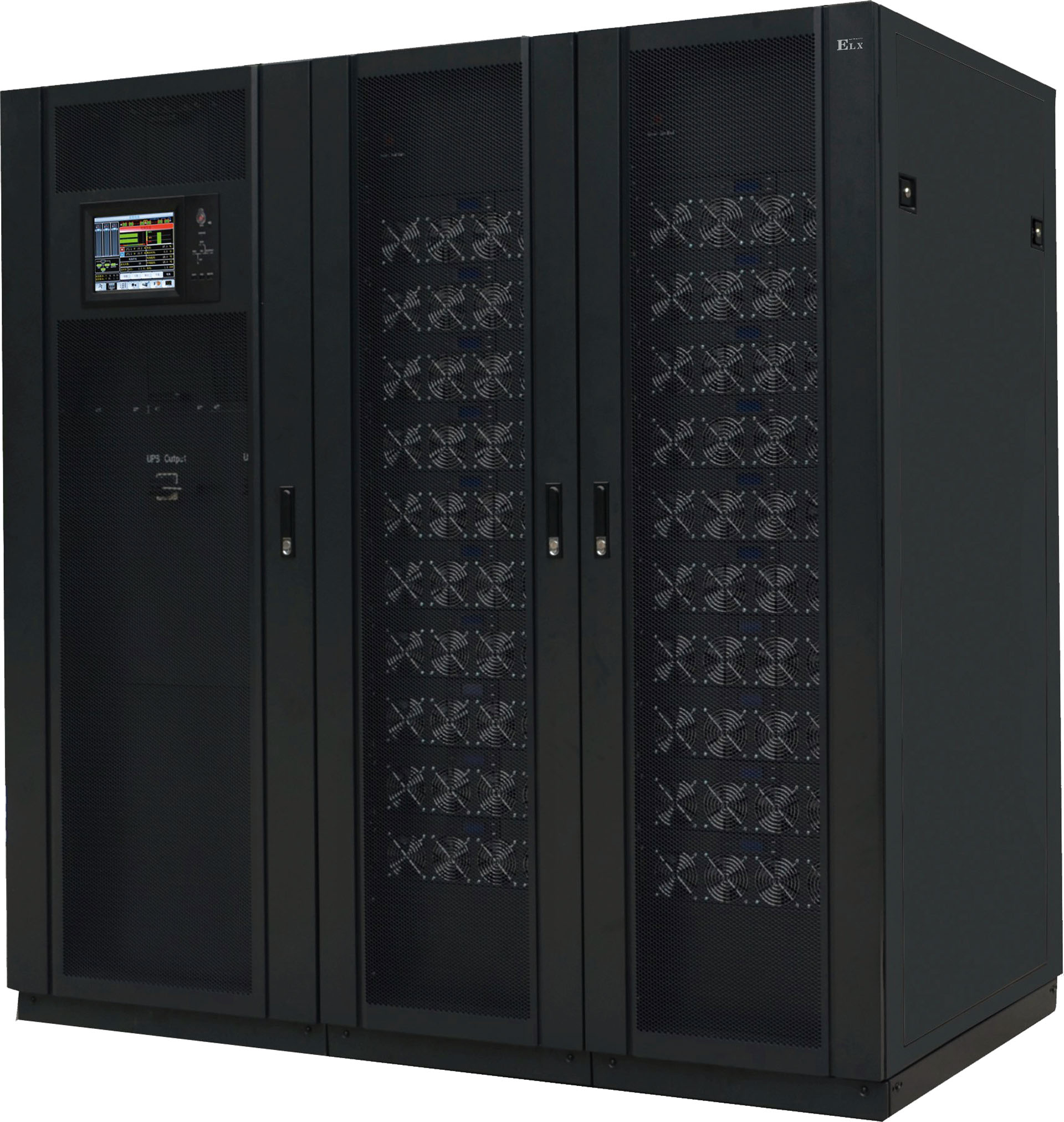

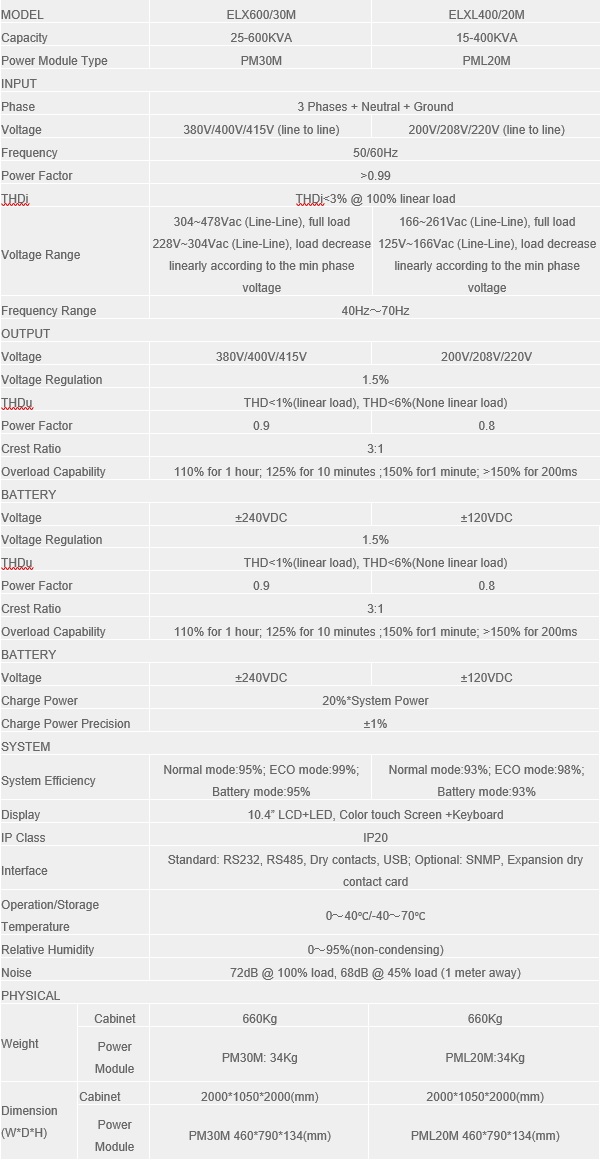

ELX600-30M
The ELX600-30M Modular UPS provides power capacity of 600KVA in one single system. With the most advanced full DSP control technology, health management system and smart monitoring system, it has been proven to be the best choice for large data centers, as well as for sensitive electronics.
- Modular design with N+X redundancy, online hot-swappable
- High power density of 600KVA in one single cabinet, 30KVA power module with only 3U height
- Green and energy saving: AC/AC efficiency>95%, input power factor>0.99 while input THDi<3%
- Full DSP control of high stability, reliability and safety
- Battery cold start, UPS can be powered on from the battery without utility
- Programmable dry contacts, the function of each port can be defined by users
Download specification here
